HMD Geometry Database

The following table lists the calculated values of rendered FOVs and other view geometry of some commercially available headsets. The data have been recorded and calculated by using the hmdq tool. Different datasets come from different contributors, typically owners of the particular model.

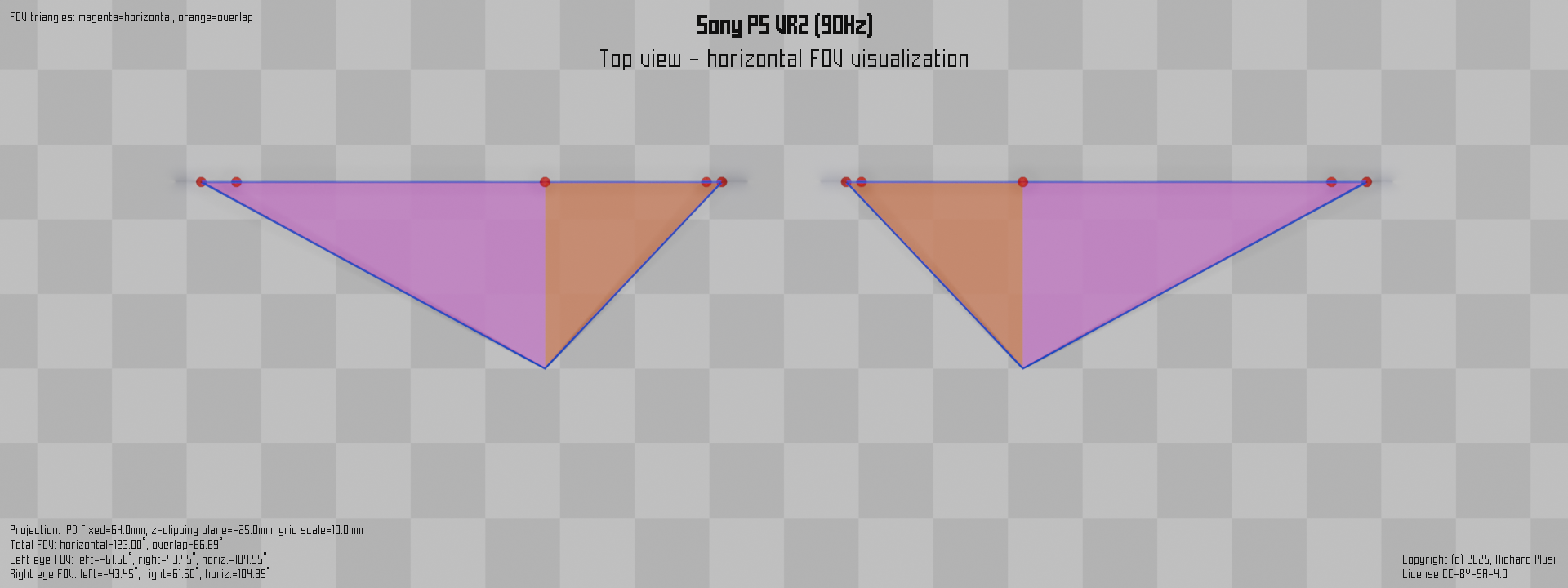

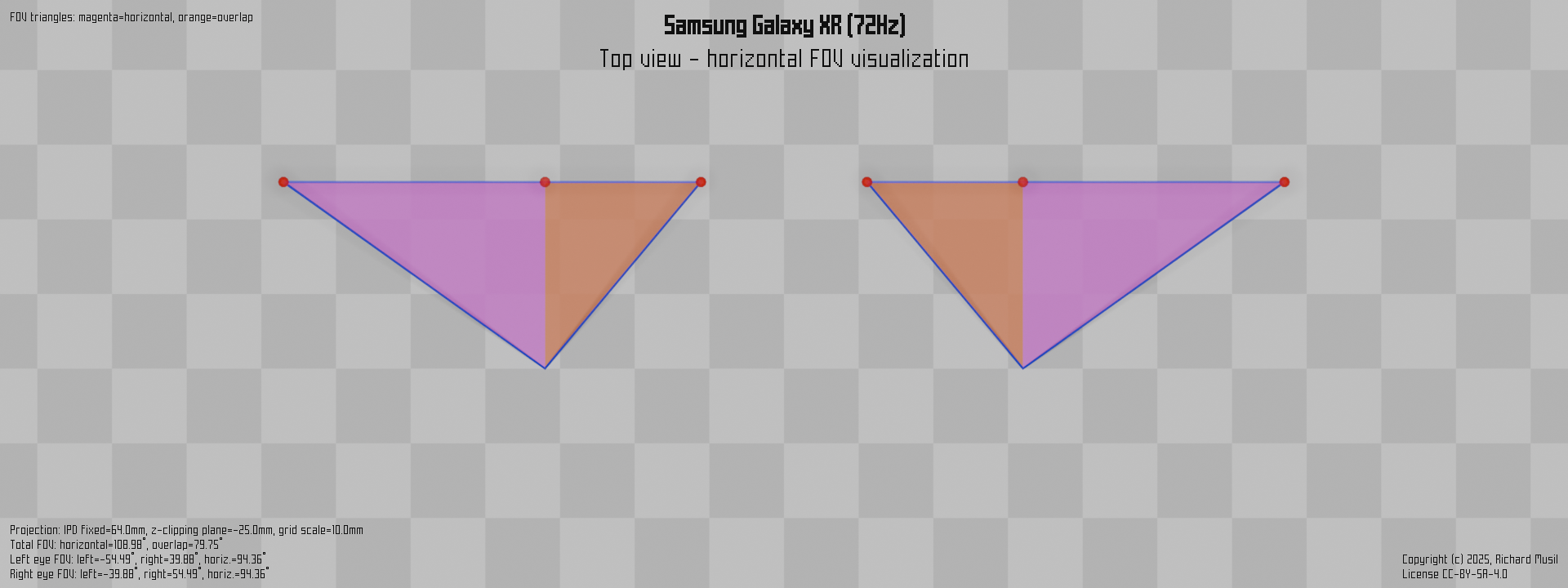

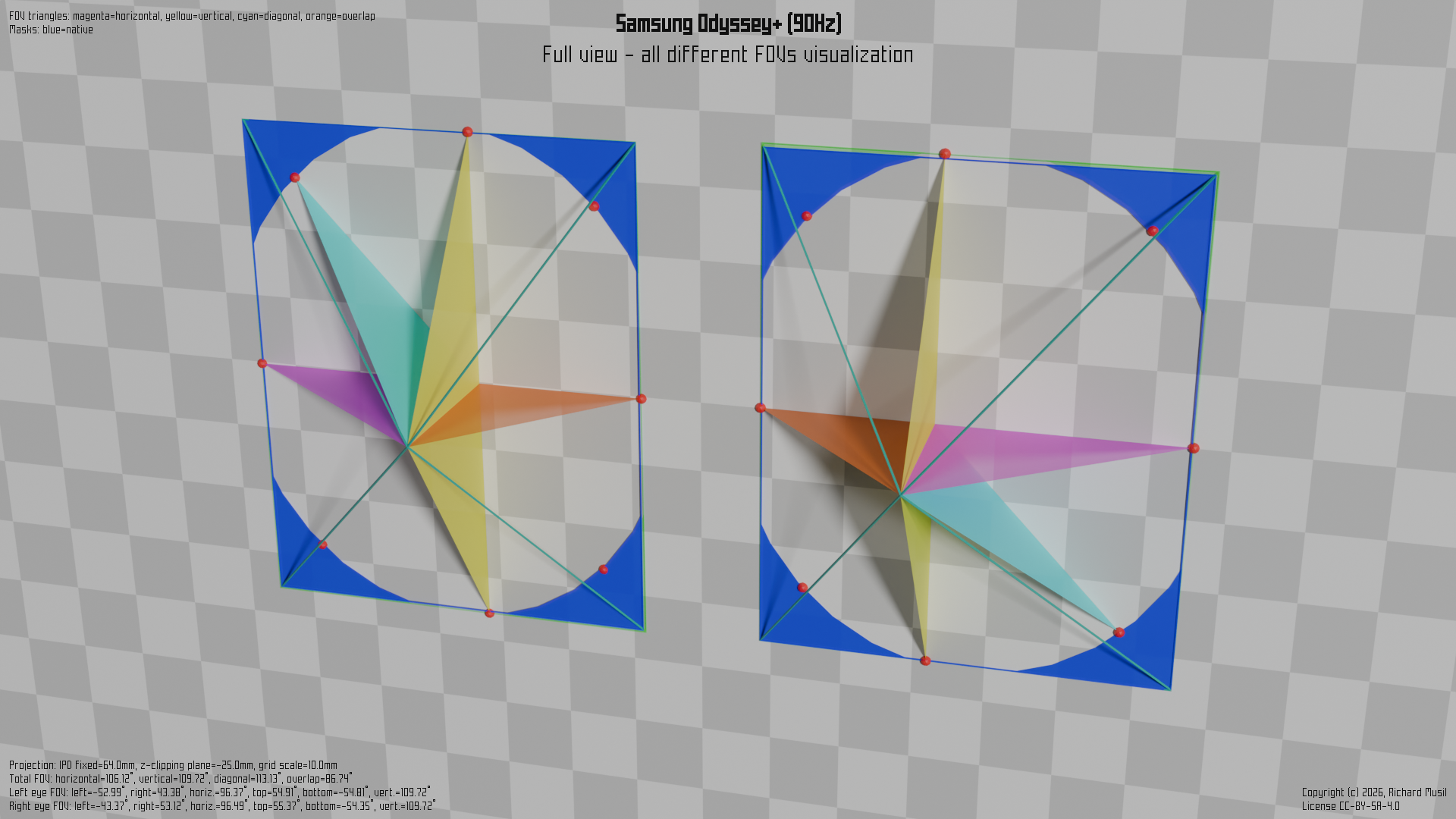

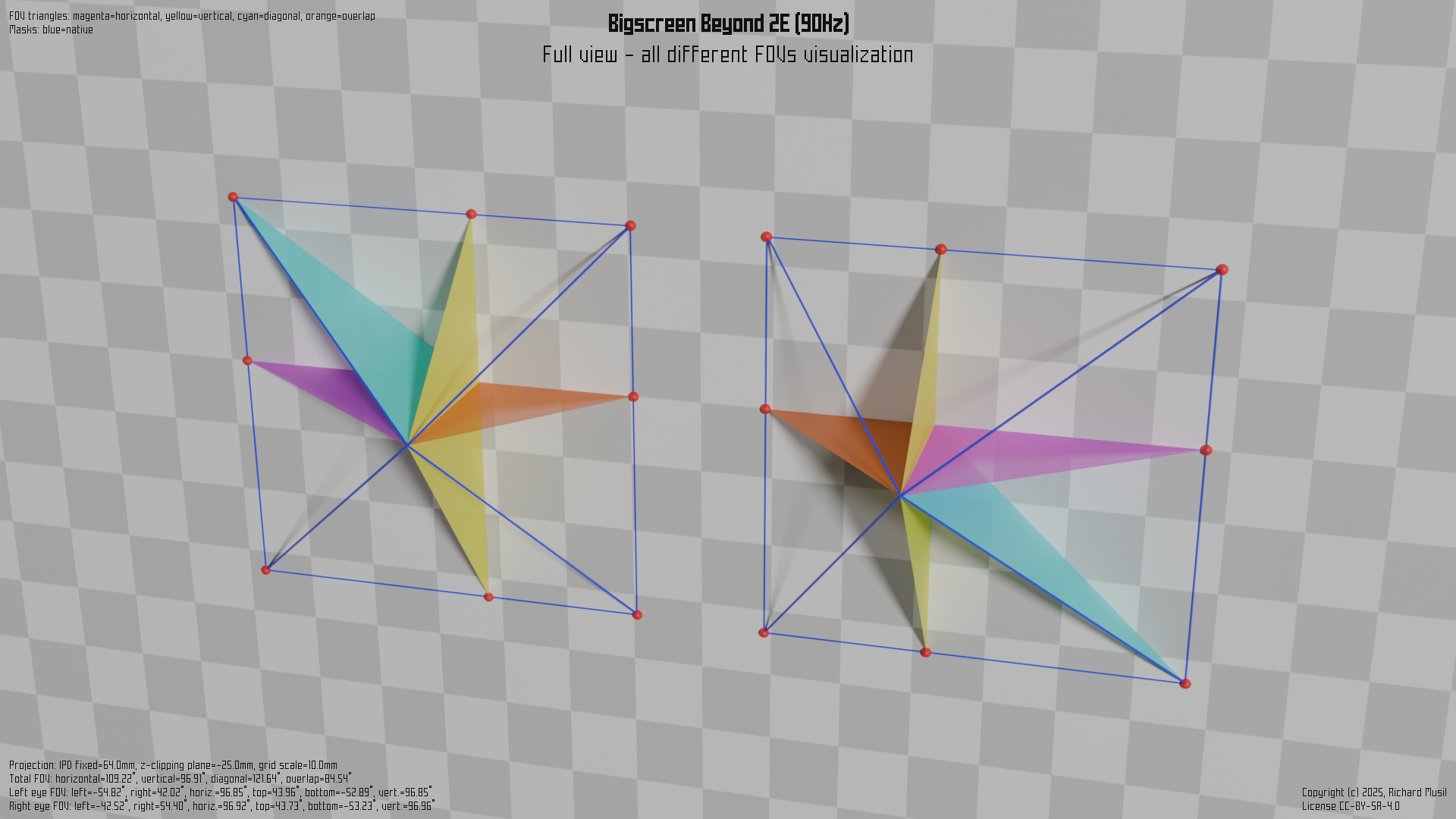

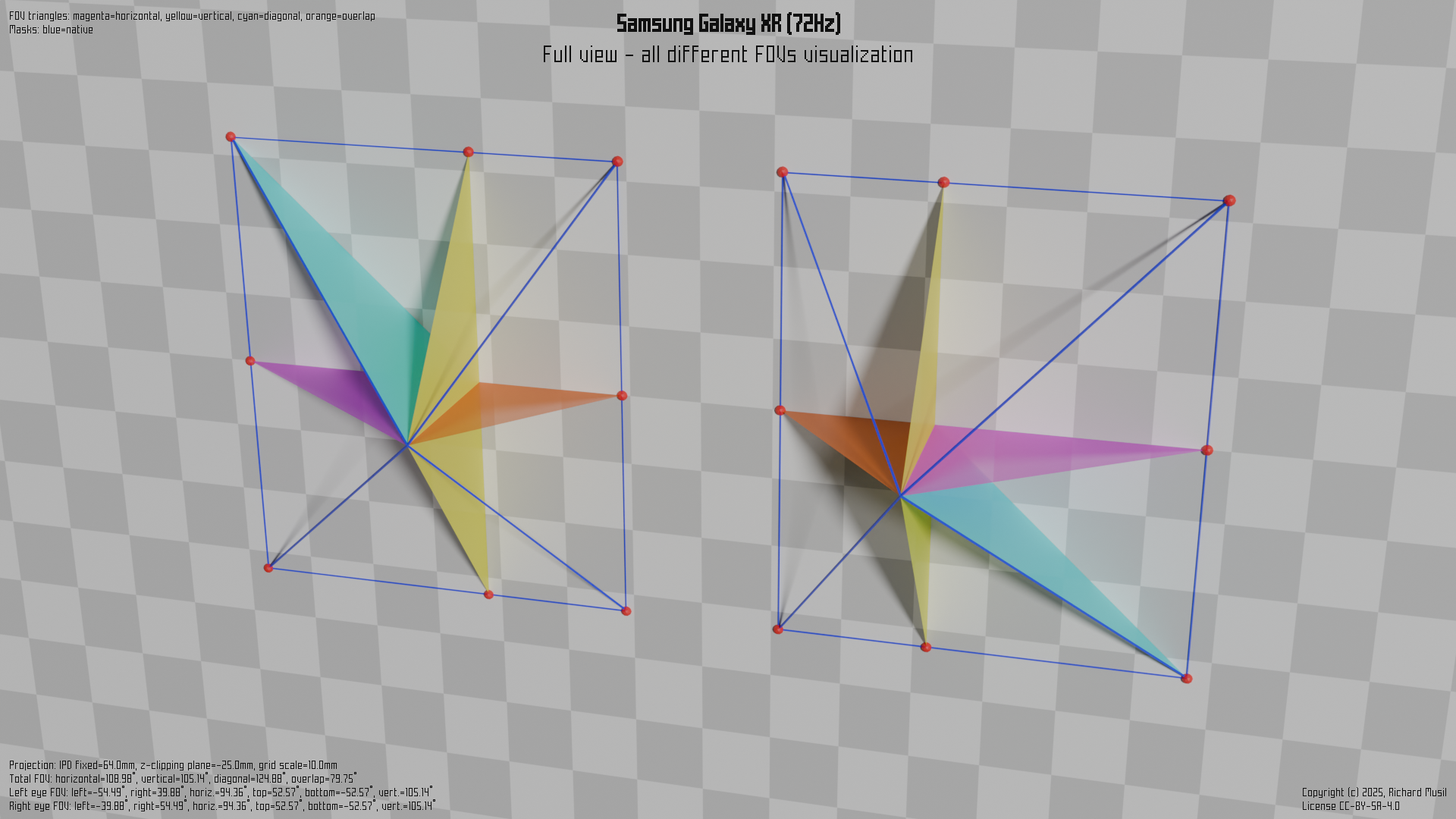

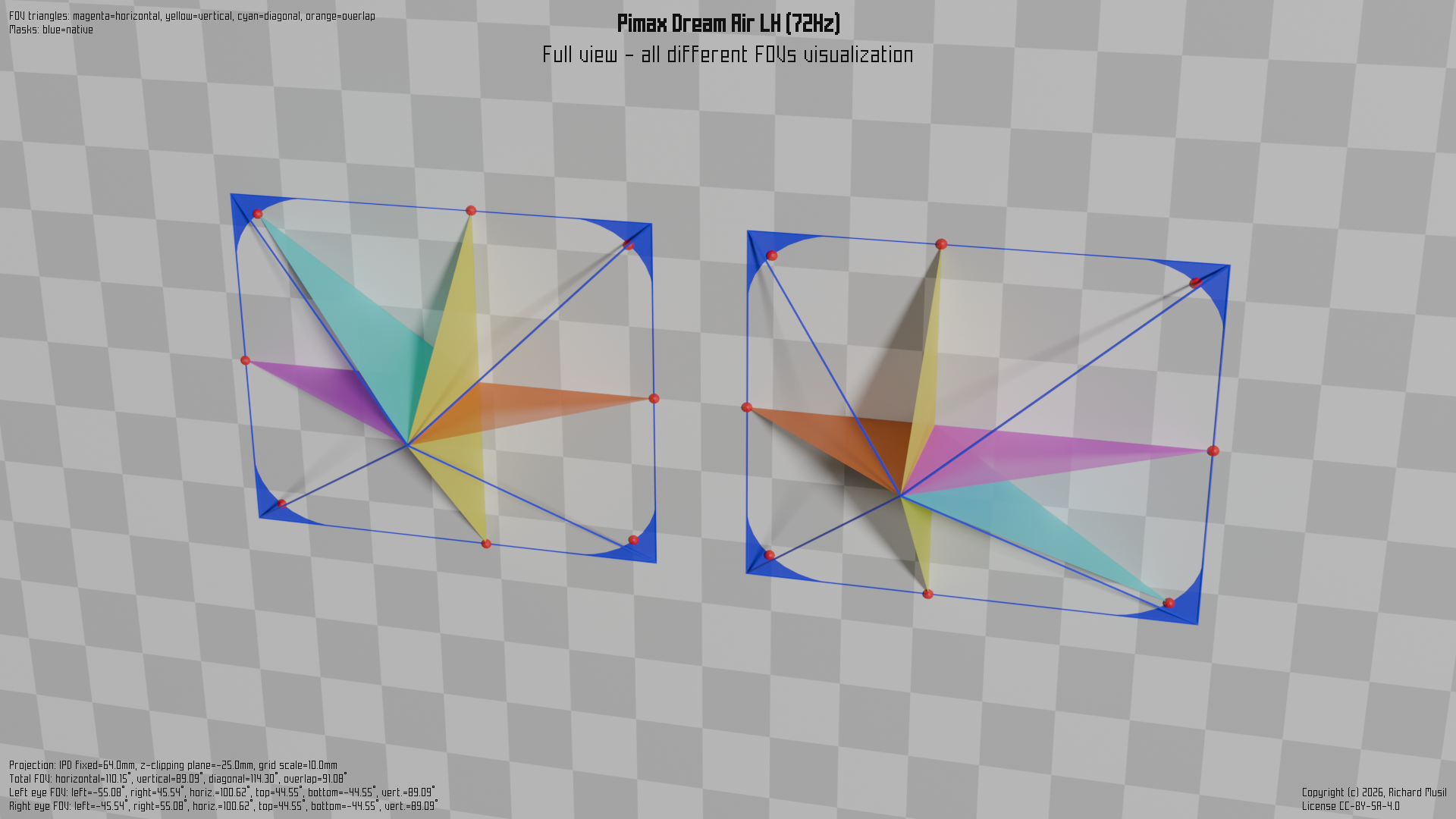

Select the particular model configuration for the complete description. Select the particular numeric value to go directly to the visualization image. Values in parentheses are to be considered unreliable. For more information about why, see this.

Model Config FOV hor. FOV ver. FOV diag. Overlap HAM Rot LE Rot RE
Bigscreen Beyond Native+R90 97.53° 88.55° 112.16° 79.60°
DPVR E4 Native+R120 96.00° 96.00° 115.03° 96.00°
HP Reverb G2 Native+R90 98.85° 90.85° 107.52° 84.31° 16.51% 0.2° -0.2°
HP Reverb Native+R90 95.76° 90.43° 111.78° 86.99° 0.04% 0.2° -0.2°
HTC VIVE Pro 2 Native+R90 116.52° 96.49° 113.30° 79.83° 10.03%
HTC Vive Elite Native+R90 97.62° 103.03° 109.31° 79.57° 9.14%
HTC Vive Focus 3 Native+R90 116.79° 96.57° 126.18° 79.66° 0.00%
HTC Vive Pro Native+R90 107.06° 107.71° 110.48° 90.46° 20.20%
HTC Vive XR Streaming Native+R90 102.13° 91.27° 116.04° 80.93° 0.00%
HTC Vive Native+R90 108.77° 111.53° 113.18° 93.45° 19.10%
Lenovo Explorer Native+R90 101.73° 101.20° 103.40° 100.64° 17.74% -0.8° 0.8°
Meta Quest 3 Native+R72 108.00° 98.25° 113.30° 80.00° 12.89%
Meta Quest Pro Native+R72 108.00° 95.57° 111.24° 79.72° 14.11%
Oculus Rift CV1 Native+R90 87.95° 89.66° 98.07° 71.15° 14.07%
Oculus Rift S Native+R80 88.00° 94.00° 101.95° 92.00° 11.26%
Oculus Quest 2 Native+R72 104.00° 98.00° 113.46° 90.00° 9.13%
Oculus Quest Native+R72 104.00° 100.00° 115.52° 84.00° 5.69%
Pico Neo2 Native+R72 101.00° 101.00° 119.52° 101.00°
PICO 4 Native+R90 104.00° 104.00° 122.16° 104.00°
Pico Neo 3 Native+R72 93.87° 93.87° 113.08° 93.87°
Pimax 5K Plus Large+Native+R90 160.29° 102.70° 158.04° 86.79° 3.49% -10.0° 10.0°
Pimax 5K Plus Large+PP+R90 160.29° (94.71°) 159.18° 86.79° 13.87%
Pimax 5K Plus Normal+Native+R144 139.29° 102.70° 133.95° 82.41° 8.73% -10.0° 10.0°
Pimax 5K Plus Normal+Native+R90 140.29° 102.70° 134.52° 86.79° 8.73% -10.0° 10.0°
Pimax 5K Plus Normal+PP+R144 139.29° (100.15°) 136.90° 82.41° 19.11%
Pimax 5K Plus Normal+PP+R90 140.29° (100.63°) 137.62° 86.79° 19.11%
Pimax 5K Plus Small+Native+R120 120.13° 102.70° 119.80° 86.79° 8.73% -10.0° 10.0°
Pimax 5K Plus Small+Native+R144 119.29° 102.70° 119.62° 82.41° 8.73% -10.0° 10.0°
Pimax 5K Plus Small+Native+R90 120.29° 102.70° 119.90° 86.79° 8.73% -10.0° 10.0°
Pimax 5K Plus Small+PP+R120 120.13° (105.63°) 123.62° 86.79° 19.11%
Pimax 5K Plus Small+PP+R144 119.29° (104.95°) 123.32° 82.41° 19.11%
Pimax 5K Plus Small+PP+R90 120.29° (105.59°) 123.71° 86.79° 19.11%
Pimax 5K Plus Tiny+Native+R120 100.13° 102.70° 108.43° 86.79° 8.73% -10.0° 10.0°
Pimax 5K Plus Tiny+Native+R90 100.29° 102.70° 108.51° 86.79° 8.73% -10.0° 10.0°
Pimax 5K Plus Tiny+PP+R120 100.13° (110.08°) 114.14° 86.79° 19.11%
Pimax 5K Plus Tiny+PP+R90 100.29° (110.04°) 114.20° 86.79° 19.11%
Pimax 8K Large+Native+R80 160.29° 104.27° 158.14° 86.79° 3.49% -10.0° 10.0°
Pimax 8K Large+PP+R80 160.29° (116.14°) 161.03° 86.79° 1.75%
Pimax 8K Normal+Native+R80 140.29° 104.27° 134.88° 86.79° 8.73% -10.0° 10.0°
Pimax 8K Normal+PP+R80 140.29° (117.12°) 137.91° 86.79° 8.73%
Pimax 8K Small+Native+R80 120.29° 104.27° 120.57° 86.79° 8.73% -10.0° 10.0°
Pimax 8K Small+PP+R80 120.29° (117.12°) 124.38° 86.79° 8.73%
Pimax Artisan Small+Native+R90+I60 131.56° 102.70° 127.67° 86.79° 8.73% -10.0° 10.0°
Pimax Artisan Small+Native+R90+I70 117.49° 102.70° 118.15° 86.79° 8.73% -10.0° 10.0°
Pimax Artisan Small+PP+R90+I60 131.56° (102.87°) 130.91° 86.79° 19.11%
Pimax Artisan Small+PP+R90+I70 117.49° (106.23°) 122.15° 86.79° 19.11%
Pimax Artisan Tiny+Native+R90+I60 111.56° 102.70° 114.64° 86.79° 8.73% -10.0° 10.0°
Pimax Artisan Tiny+Native+R90+I70 97.49° 102.70° 107.11° 86.79° 8.73% -10.0° 10.0°
Pimax Artisan Tiny+PP+R90+I60 111.56° (107.60°) 119.12° 86.79° 19.11%
Pimax Artisan Tiny+PP+R90+I70 97.49° (110.63°) 113.13° 86.79° 19.11%
Pimax Crystal Native+R120 103.31° 103.75° 115.99° 83.31° 3.49%
Pimax Vision 8K Plus Large+Native+R110 159.21° 102.70° 152.17° 86.79° 8.73% -10.0° 10.0°
Pimax Vision 8K Plus Large+Native+R90 160.29° 102.70° 158.04° 86.79° 3.49% -10.0° 10.0°
Pimax Vision 8K Plus Large+PP+R110 159.21° (95.07°) 155.82° 86.79° 19.11%
Pimax Vision 8K Plus Large+PP+R90 160.29° (94.71°) 159.18° 86.79° 13.87%
Pimax Vision 8K Plus Normal+Native+R110 139.21° 102.70° 133.63° 86.79° 8.73% -10.0° 10.0°
Pimax Vision 8K Plus Normal+Native+R90 140.29° 102.70° 134.52° 86.79° 8.73% -10.0° 10.0°
Pimax Vision 8K Plus Normal+PP+R110 139.21° (100.91°) 136.73° 86.79° 19.11%
Pimax Vision 8K Plus Normal+PP+R90 140.29° (100.63°) 137.62° 86.79° 19.11%
Pimax Vision 8K Plus Small+Native+R110 119.21° 102.70° 119.22° 86.79° 8.73% -10.0° 10.0°
Pimax Vision 8K Plus Small+Native+R90 120.29° 102.70° 119.90° 86.79° 8.73% -10.0° 10.0°
Pimax Vision 8K Plus Small+PP+R110 119.21° (105.84°) 123.10° 86.79° 19.11%
Pimax Vision 8K Plus Small+PP+R90 120.29° (105.59°) 123.71° 86.79° 19.11%
Pimax Vision 8K Plus Tiny+Native+R110 99.21° 102.70° 107.97° 86.79° 8.73% -10.0° 10.0°
Pimax Vision 8K Plus Tiny+Native+R90 100.29° 102.70° 108.51° 86.79° 8.73% -10.0° 10.0°
Pimax Vision 8K Plus Tiny+PP+R110 99.21° (110.27°) 113.78° 86.79° 19.11%
Pimax Vision 8K Plus Tiny+PP+R90 100.29° (110.04°) 114.20° 86.79° 19.11%
Pimax Vision 8K X Large+Native+R75 160.29° 102.70° 153.42° 82.89° 8.73% -10.0° 10.0°
Pimax Vision 8K X Large+PP+R75 160.29° (94.30°) 157.02° 82.95° 19.11%
Pimax Vision 8K X Normal+Native+R75 140.29° 102.70° 134.74° 82.95° 8.73% -10.0° 10.0°
Pimax Vision 8K X Normal+PP+R75 140.29° (99.98°) 137.70° 82.95° 19.11%
Pimax Vision 8K X Small+Native+R75 120.29° 102.70° 120.20° 82.95° 8.73% -10.0° 10.0°
Pimax Vision 8K X Small+PP+R75 120.29° (104.83°) 123.86° 82.95° 19.11%
Pimax Vision 8K X Tiny+Native+R75 100.29° 102.70° 108.96° 82.95° 8.73% -10.0° 10.0°
Pimax Vision 8K X Tiny+PP+R75 100.29° (109.25°) 114.41° 82.95° 19.11%
StarVR One Compatible+Native+R90 107.22° 107.22° 107.22° 107.22° 29.57%
StarVR One Normal+Native+R90 177.55° 117.45° 176.68° 80.65° 28.19% -24.2° 24.2°
Valve Index Native+R144 108.06° 109.16° 114.43° 85.93° 24.88% -5.0° 5.0°
Valve Index PP+R144 109.26° (108.47°) 114.19° 84.13° 24.88%
Varjo Aero Native+R90 110.76° 85.61° 121.17° 70.02° 5.83%
Varjo VR-2 Native+R60 89.30° 89.30° 92.42° 71.64° 17.84%
Varjo XR-1 Native+R60 89.12° 89.32° 92.28° 72.27° 17.84%

Model: Name of the headset model (including the company name).

Config: Headset configuration. For the “traditional” headsets, there is just the default one called Native. Headsets which allow different configurations can have multiple entries here, differentiated by the FOV size, by the refresh rate, and in some cases, where it matters, by an IPD. The refresh rate is encoded by R (in Hz), and the IPD is encoded by I (in milimeters).

An example are Pimax headsets, which allow a user to choose a different view geometry (native or parallel projection modes, different horizontal FOVs).

Because there is quite a lot of different combinations for Pimax headsets, some configurations are omitted (typically refresh rates, which do have the same geometry). When this happens you just should go by the closest config, which is in the table.

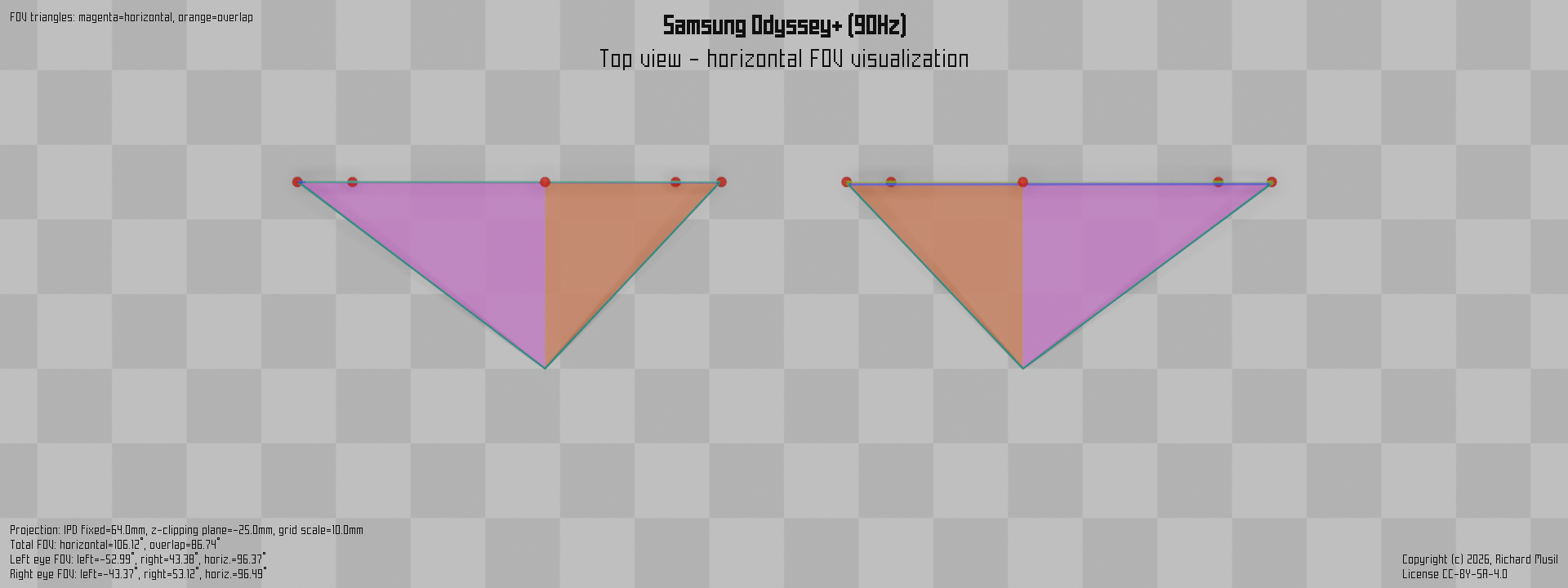

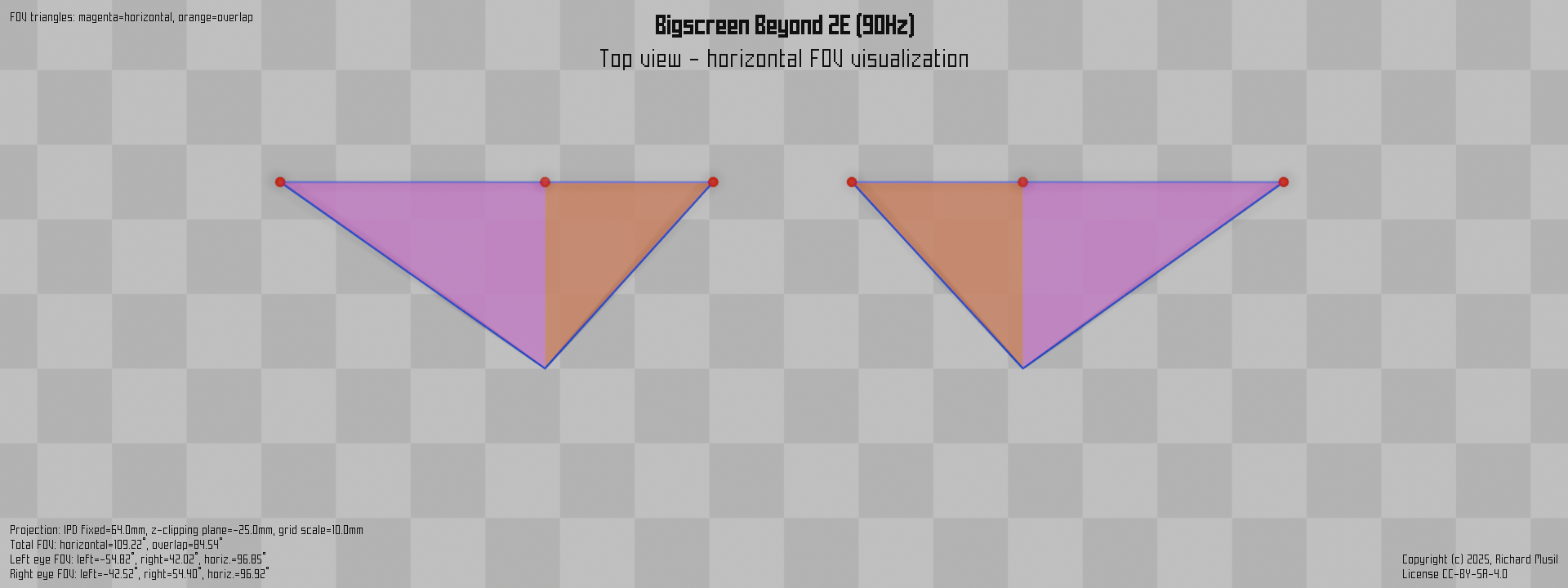

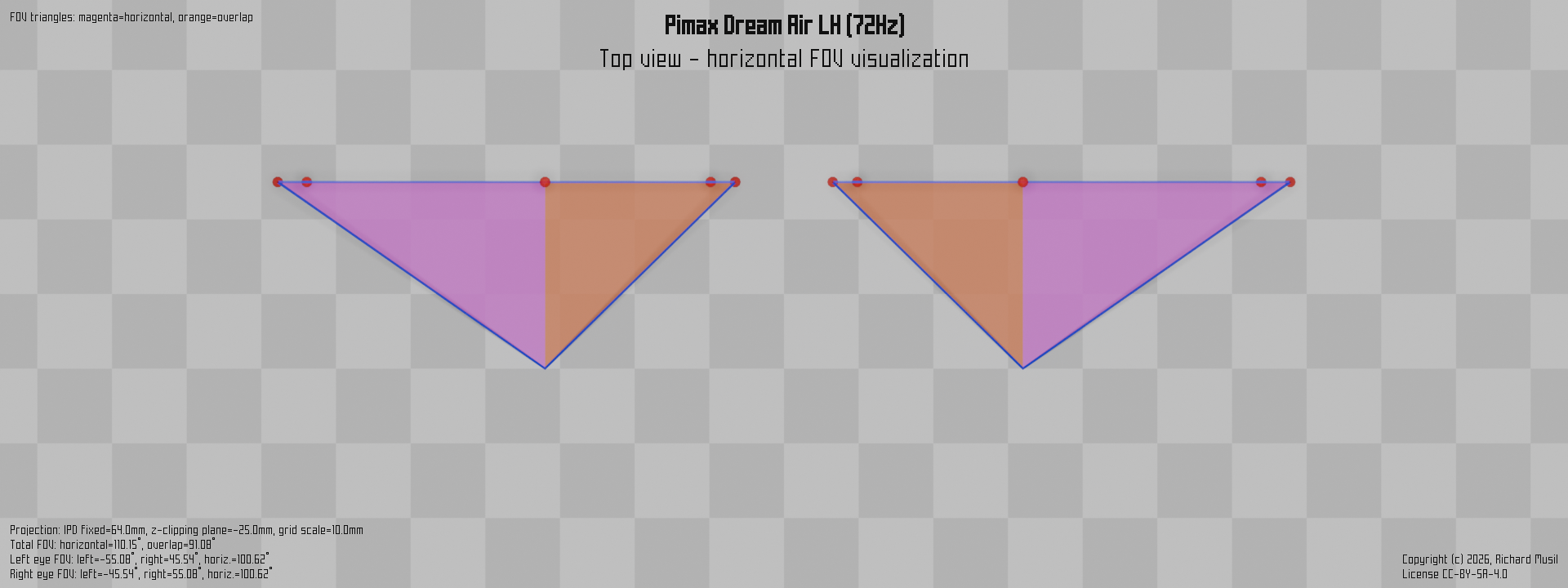

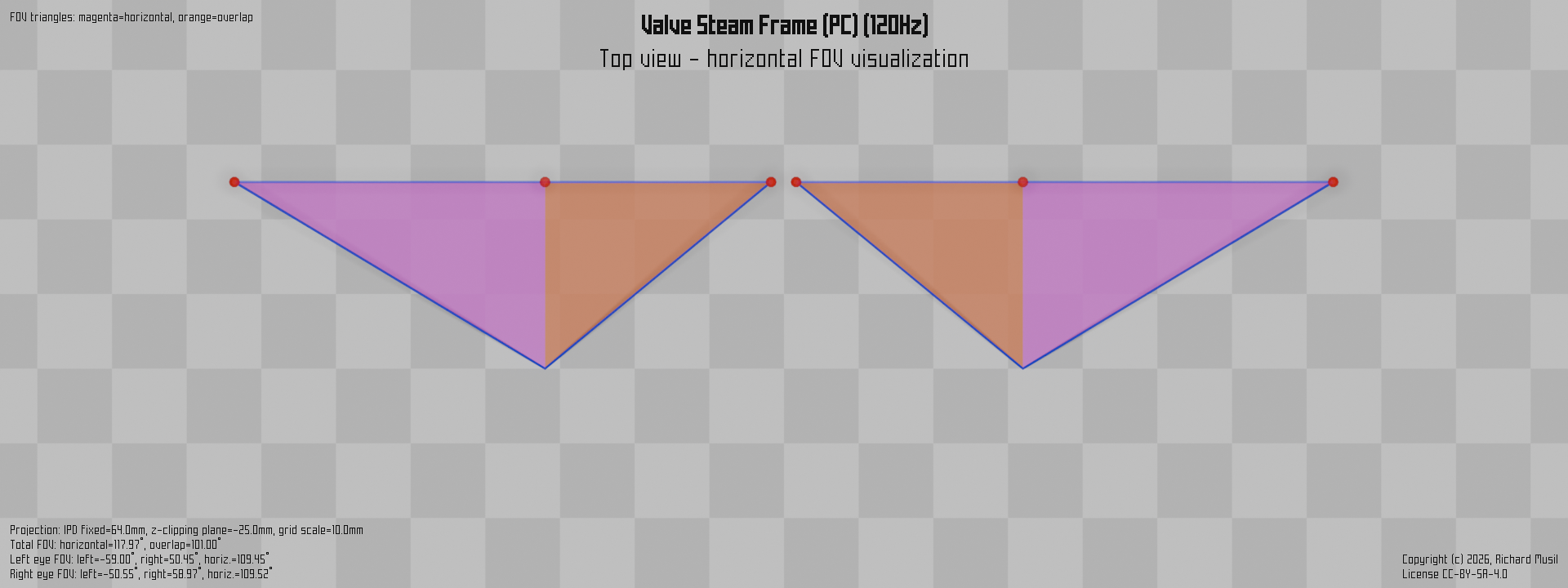

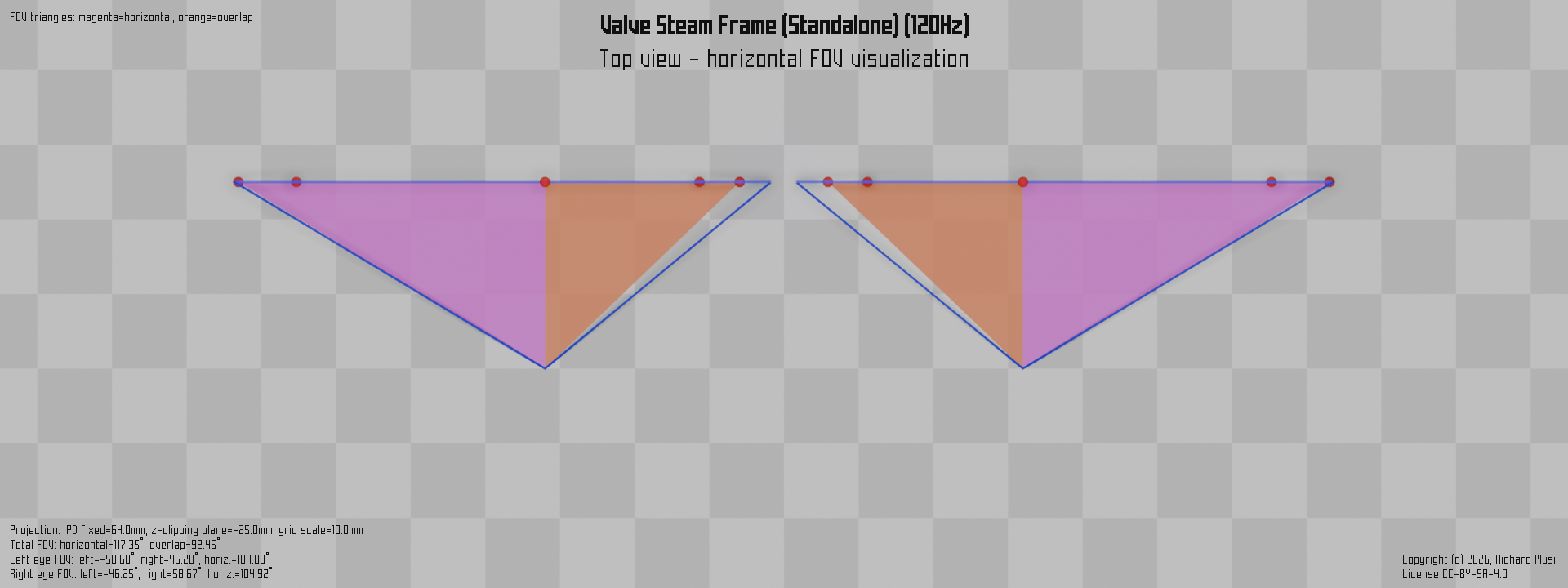

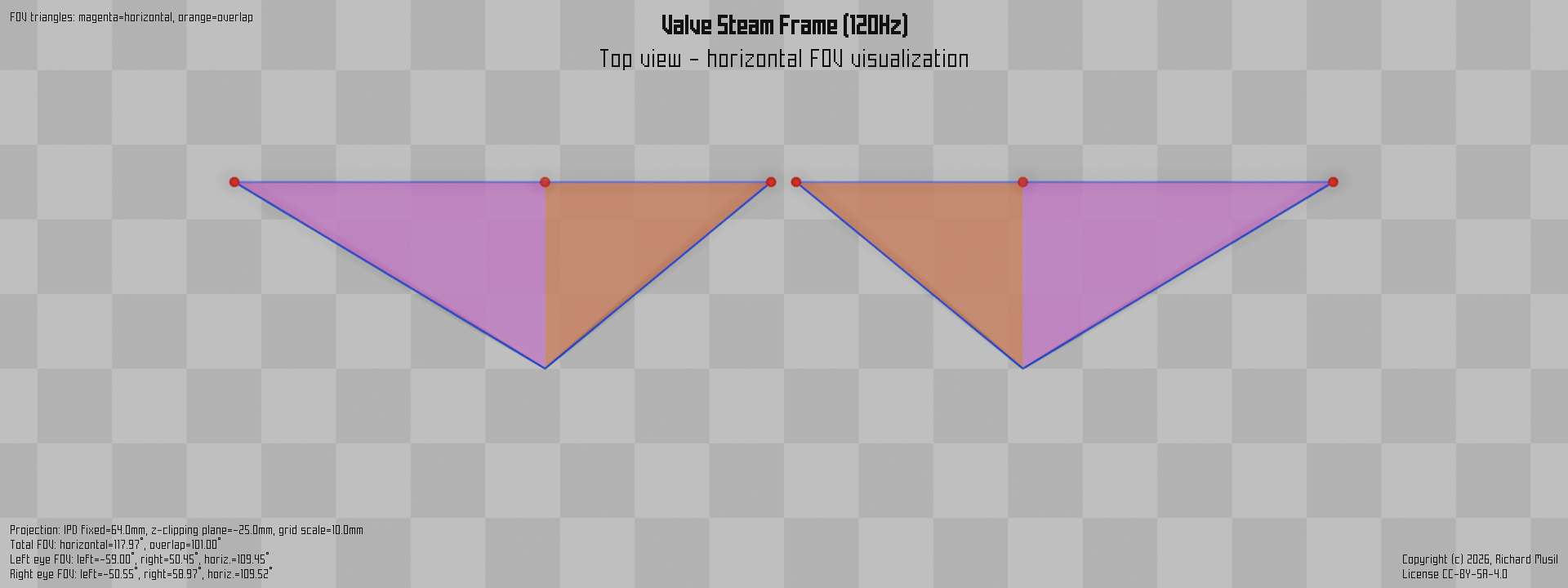

FOV hor.: Total (stereo) horizontal FOV, i.e. the visible angular range at least by one eye in a horizontal plane at the eye level.

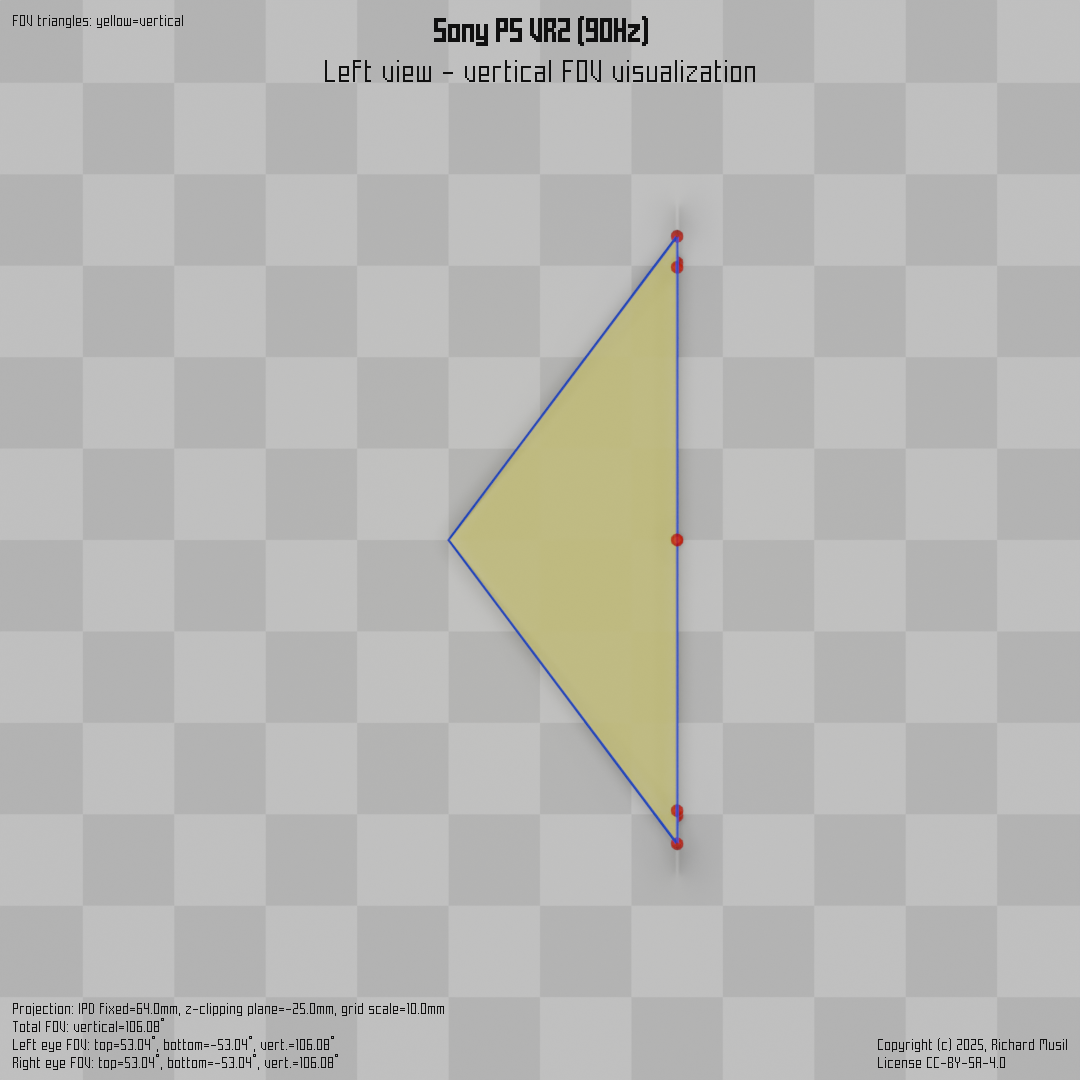

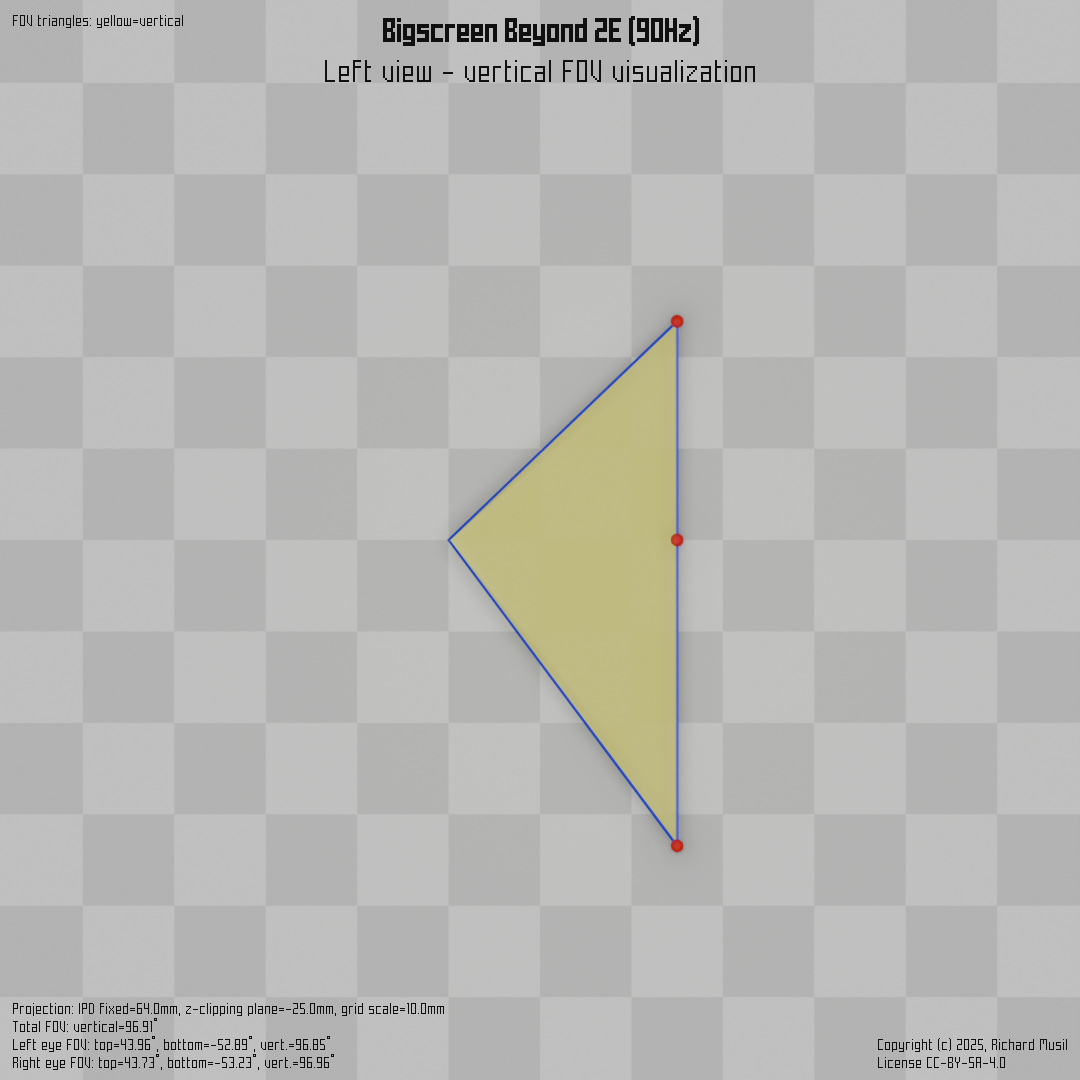

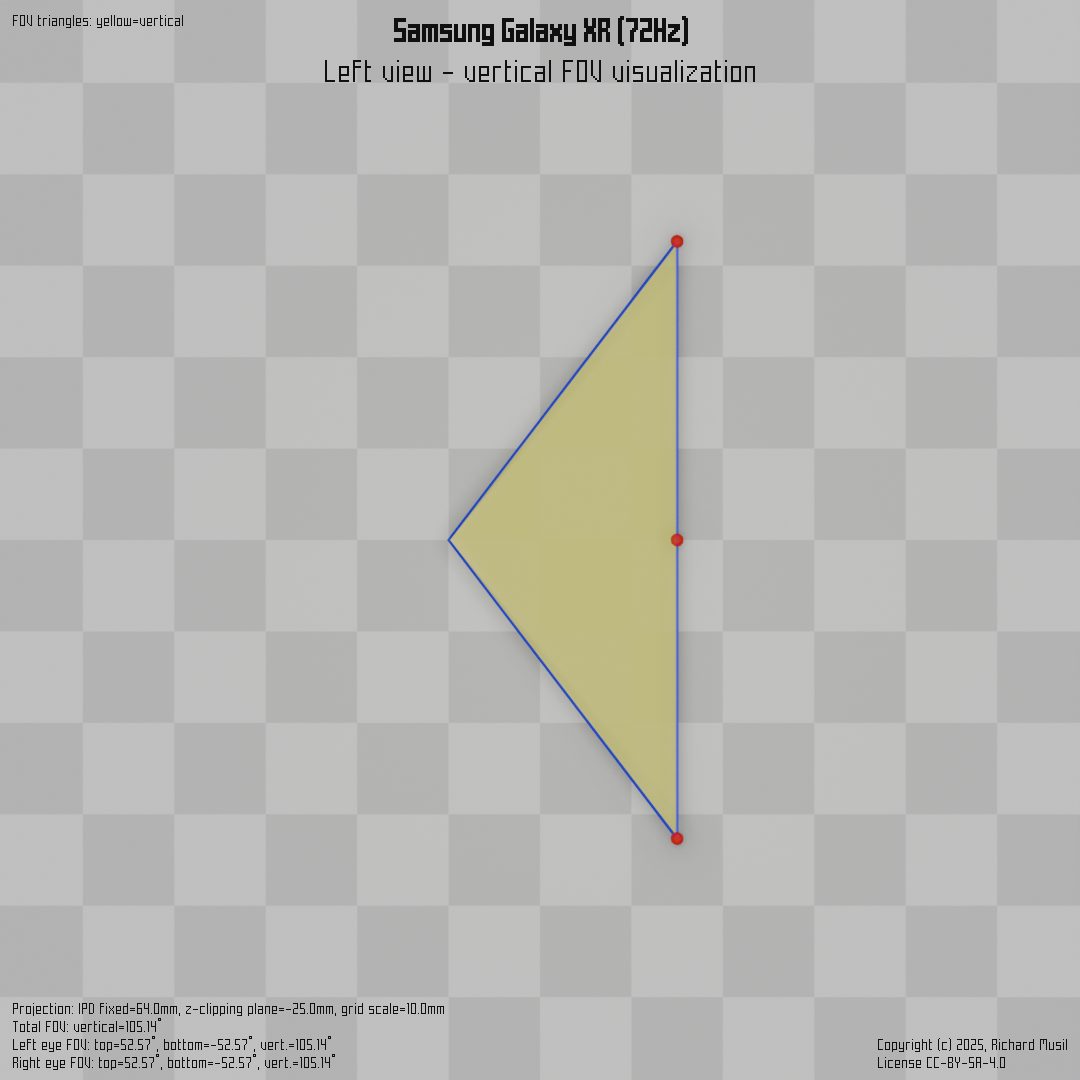

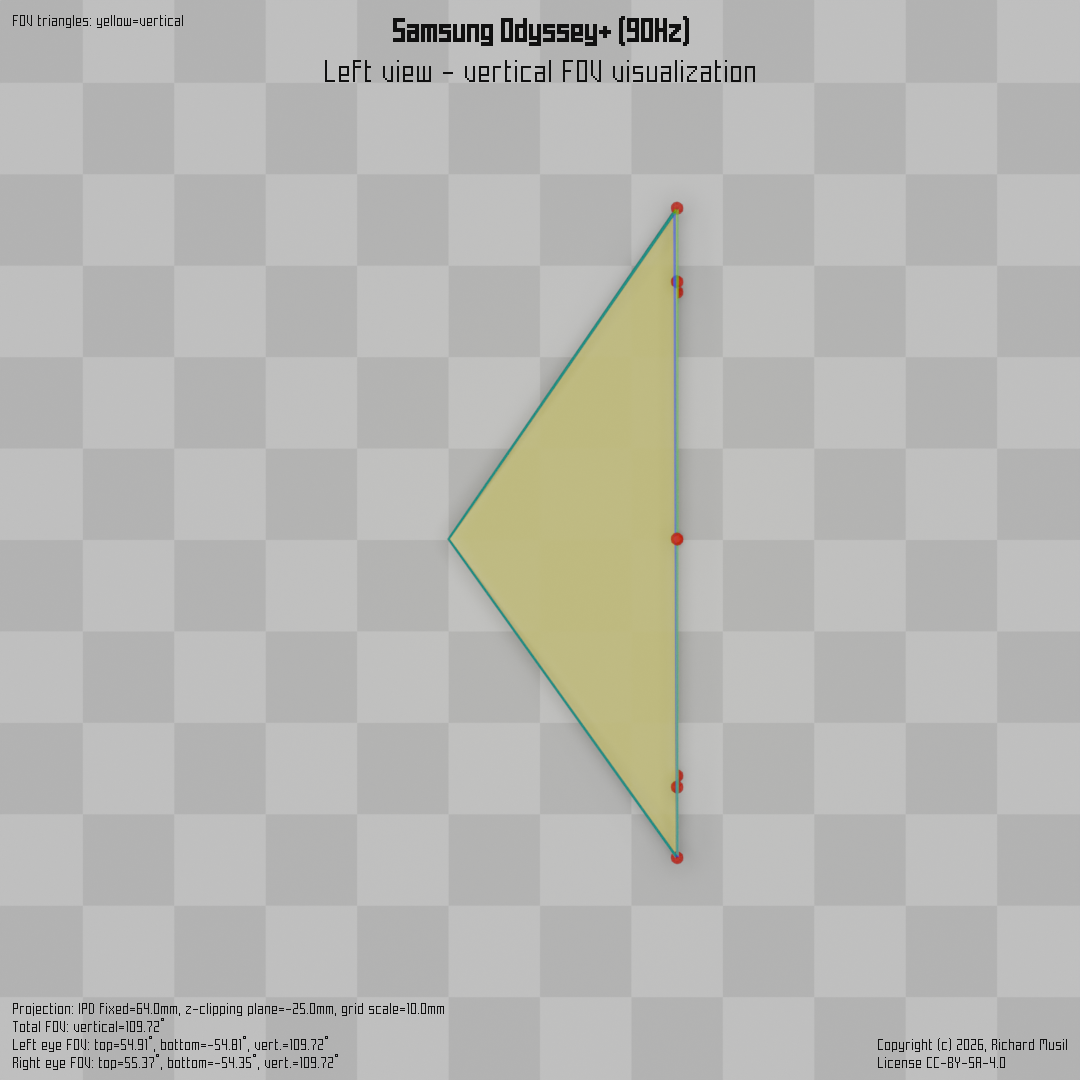

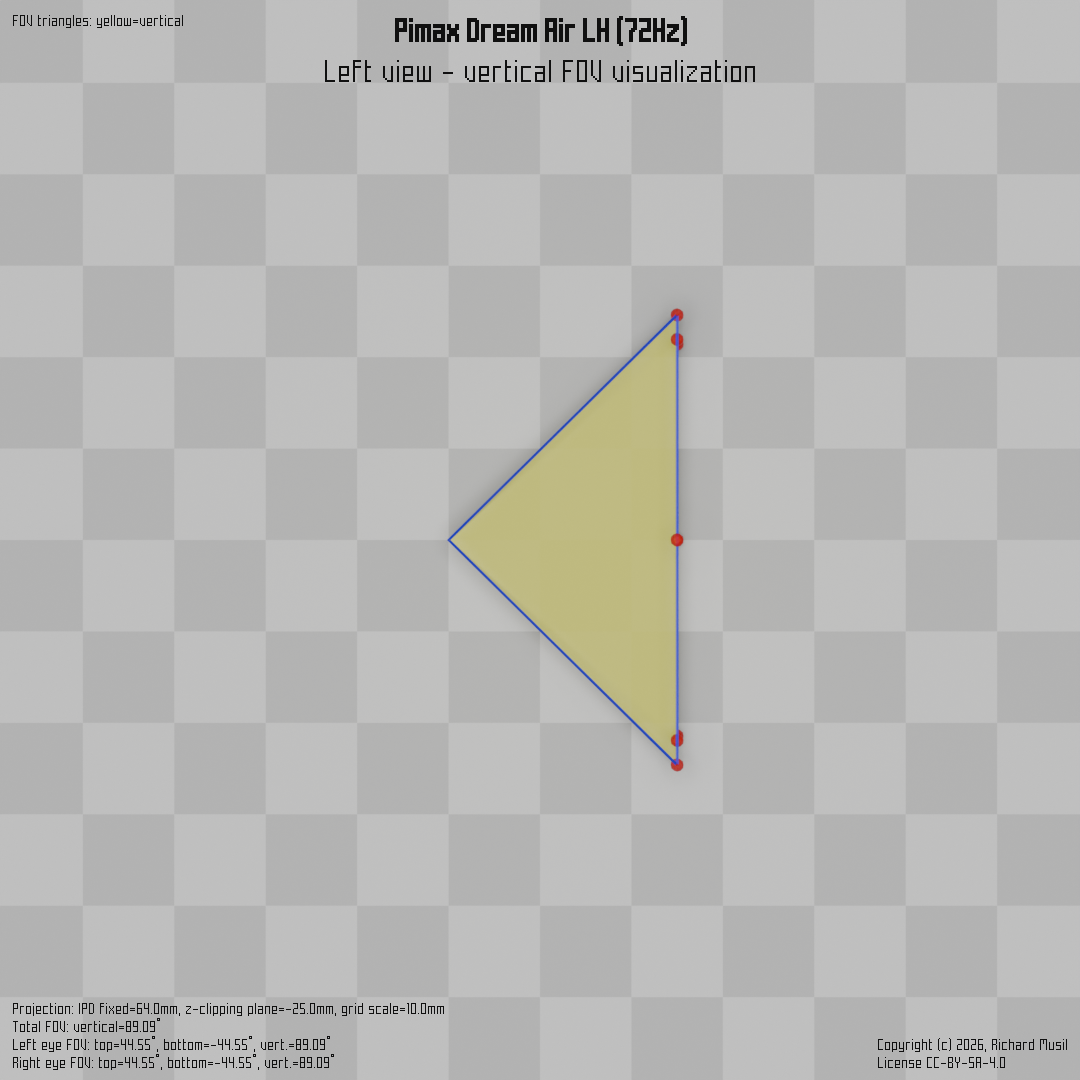

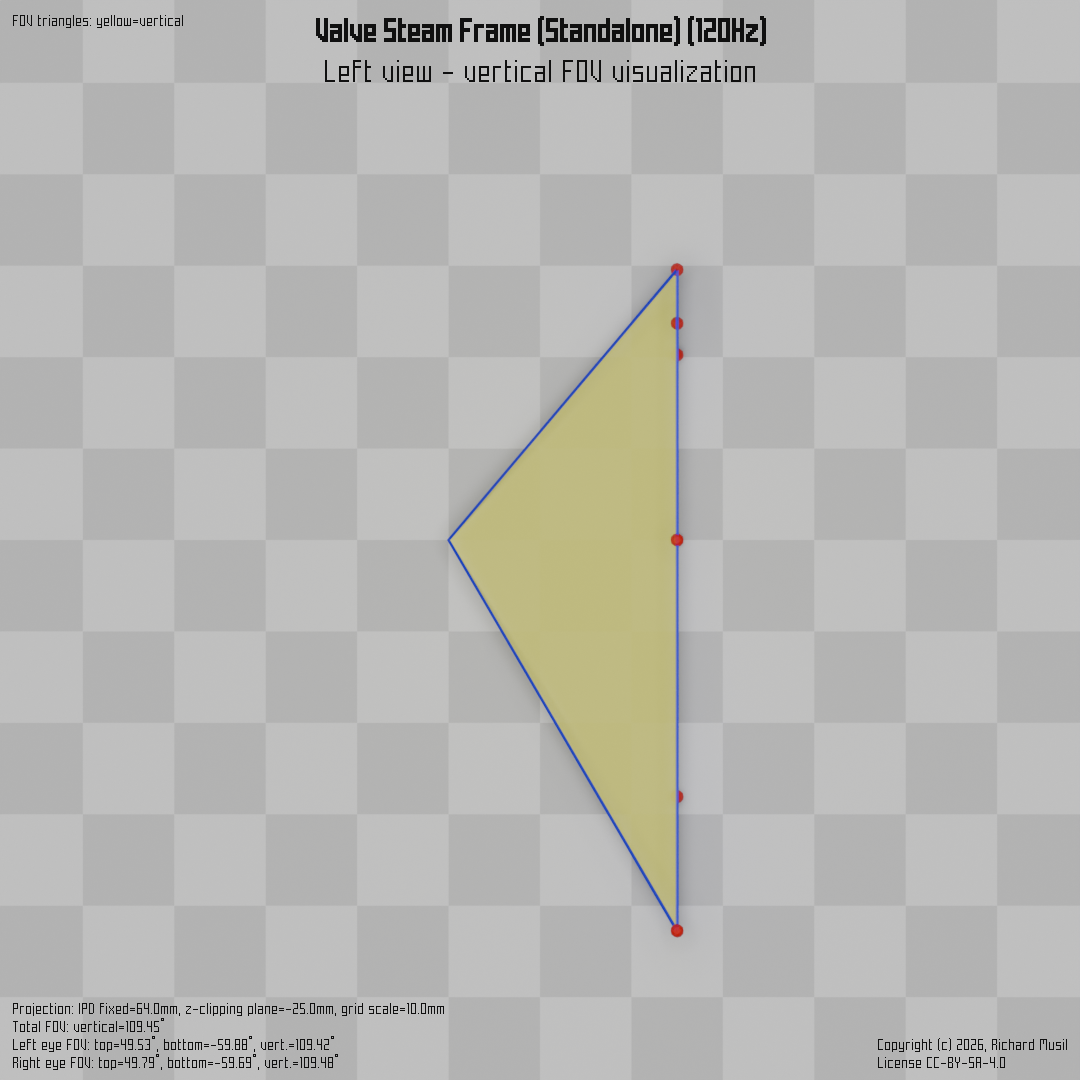

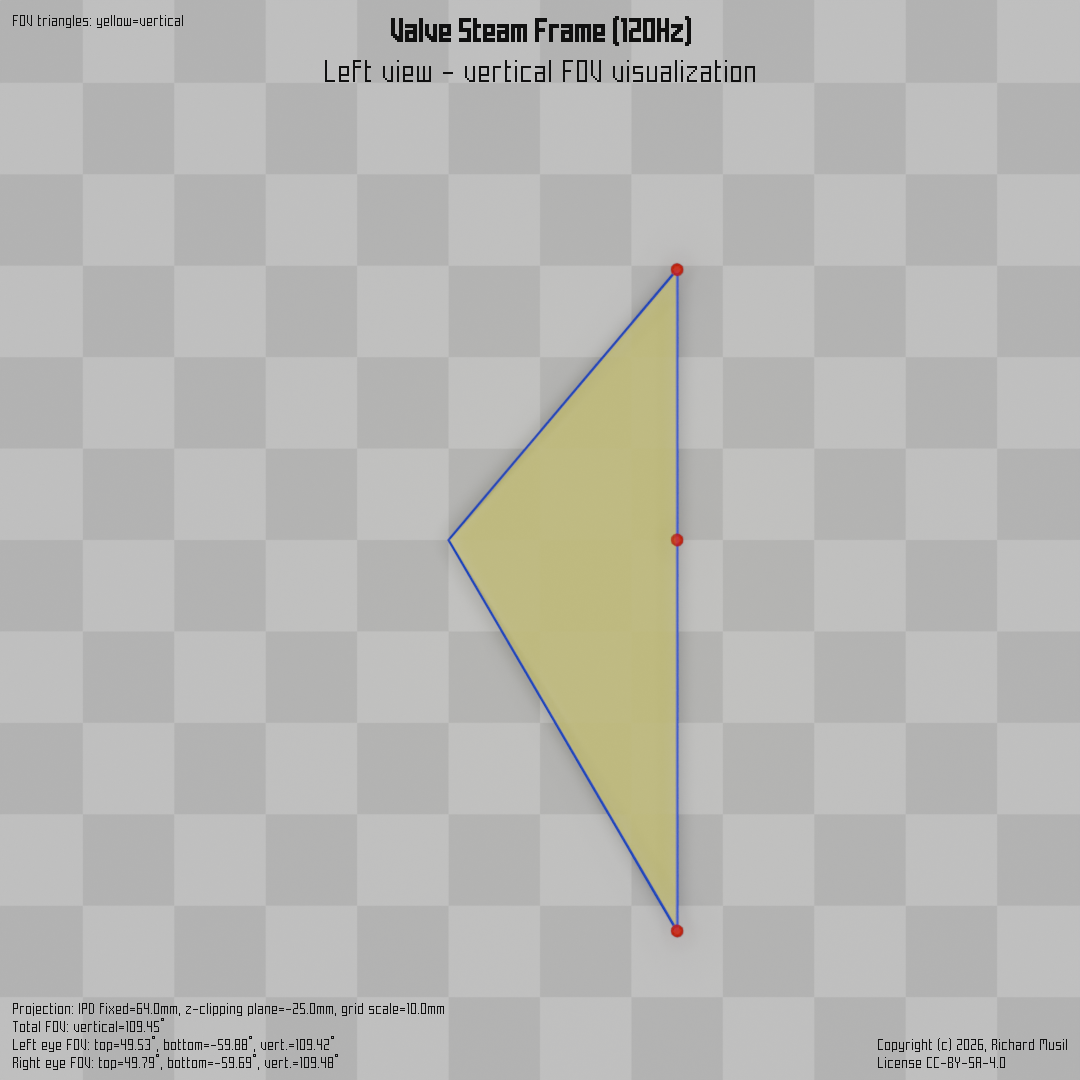

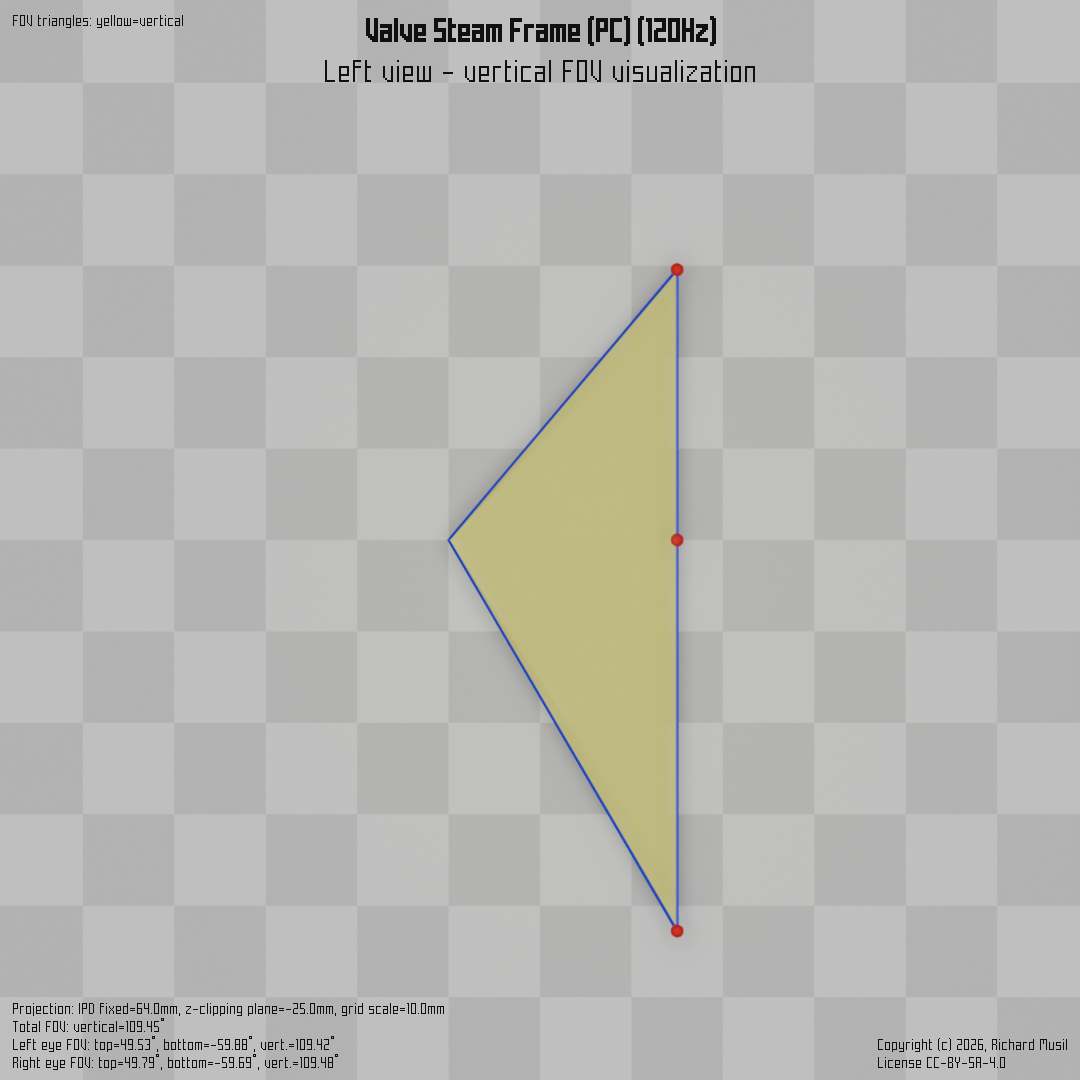

FOV ver.: Vertical FOV, i.e. the visible angular range in a vertical plane when looking straight ahead.

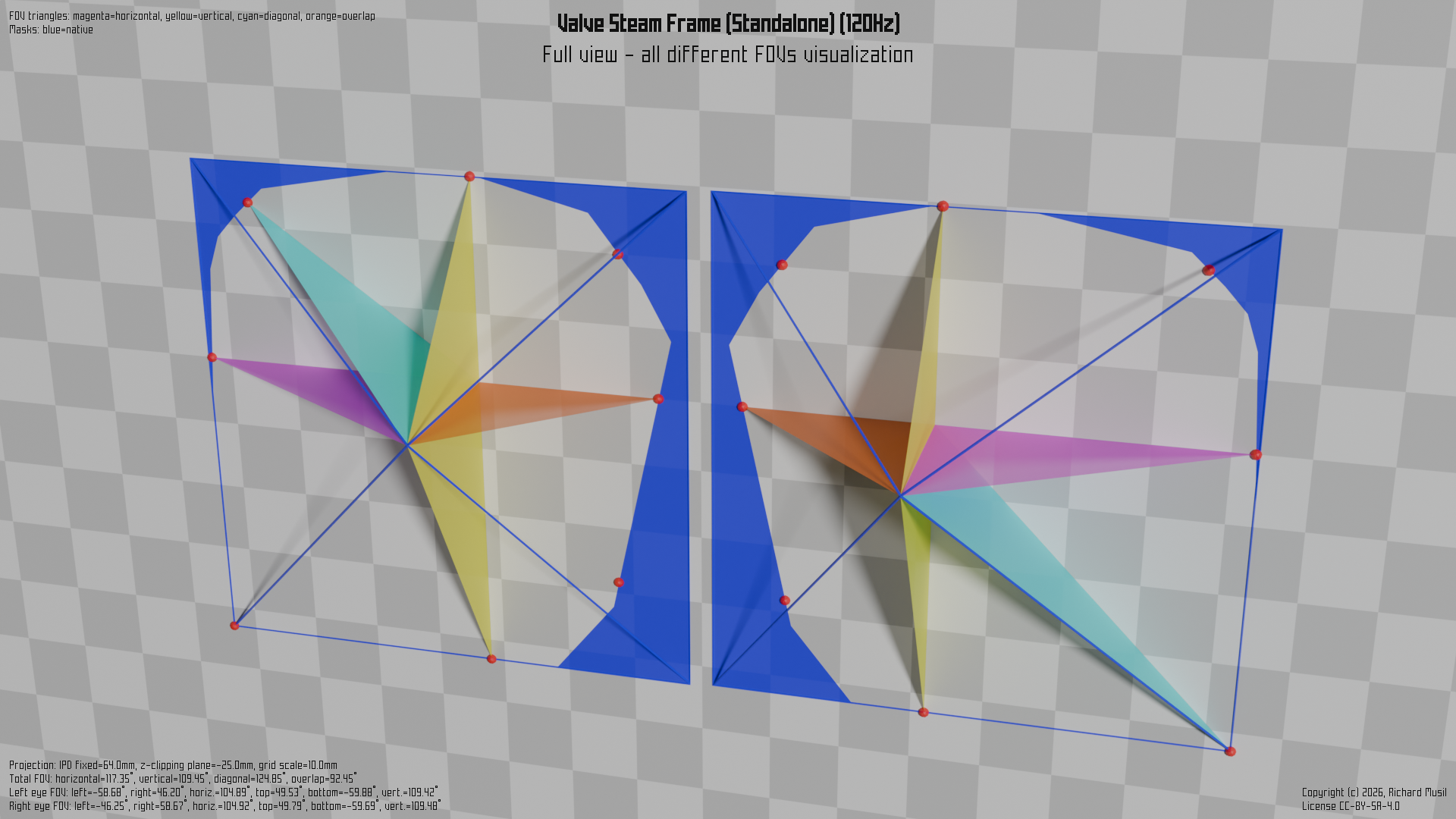

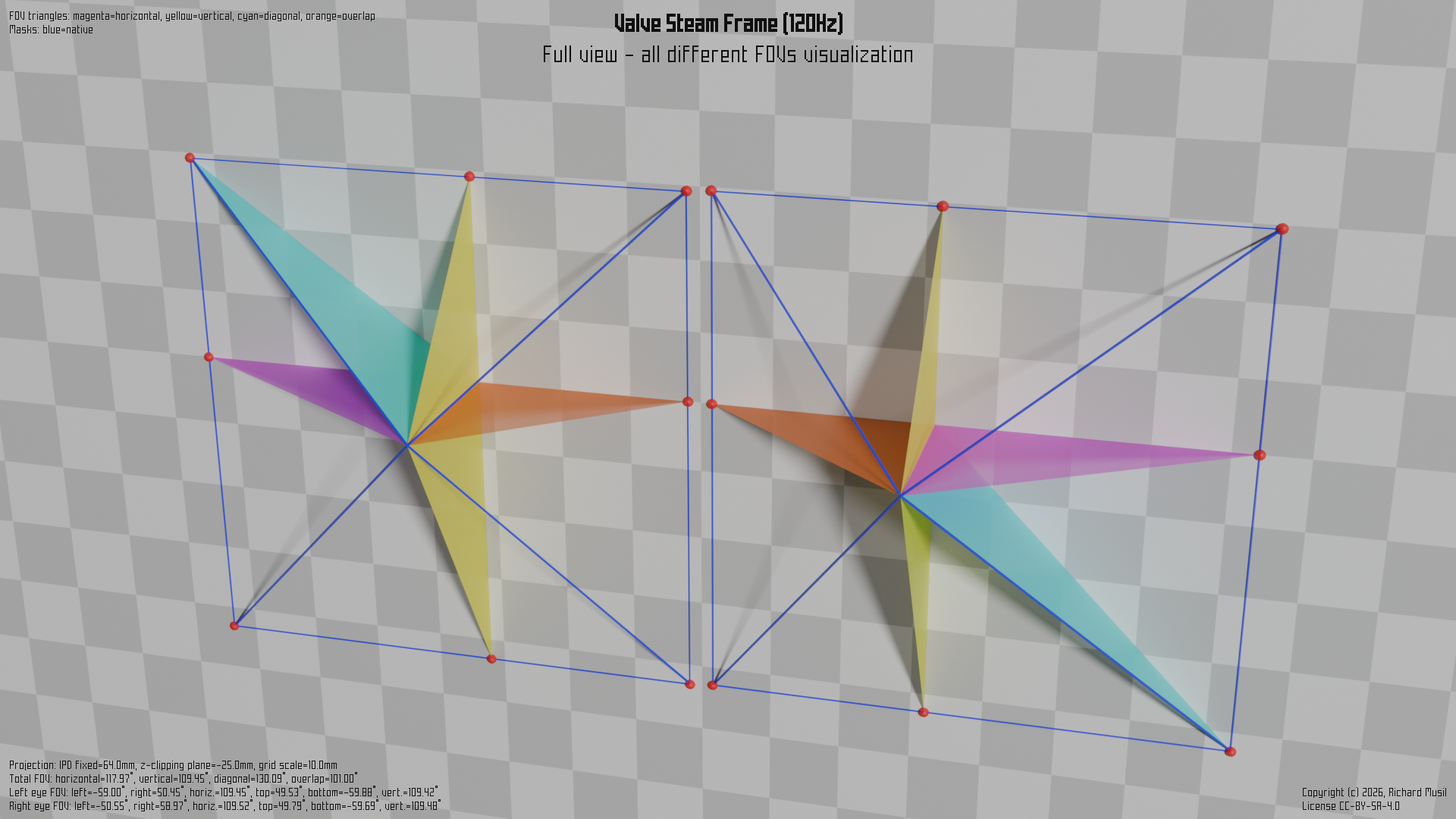

FOV diag.: Total (stereo) diagonal FOV, i.e. the angular range visible in a “diagonal plane”. See the Full view images for the visualization of the diagonal plane. Intuitively this one should be bigger than the total horizontal FOV, but practically it is sometimes reduced by the HAM.

Overlap: Stereo overlap, i.e. the angular range in a horizontal plane at the eye level visible by both eyes.

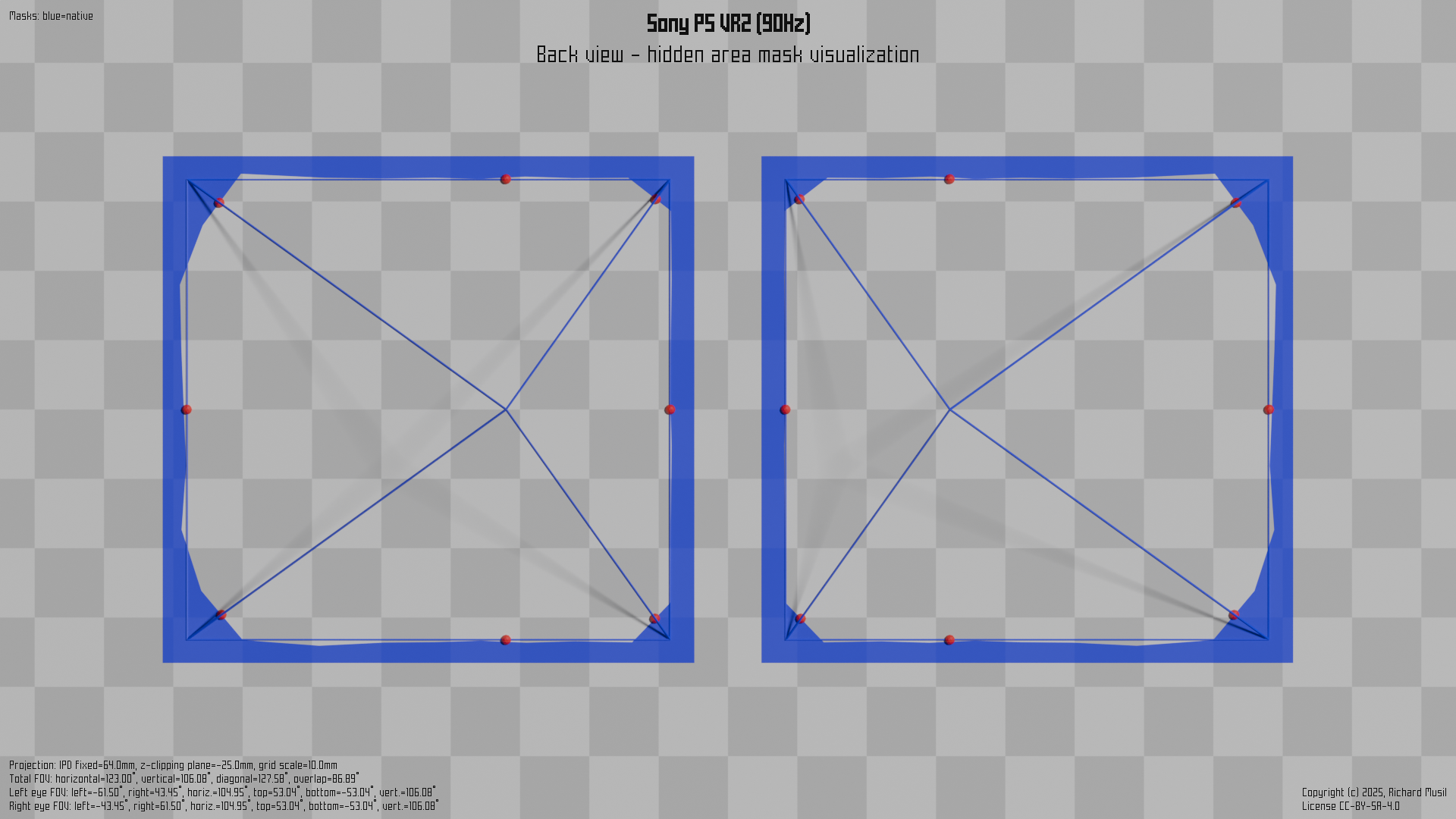

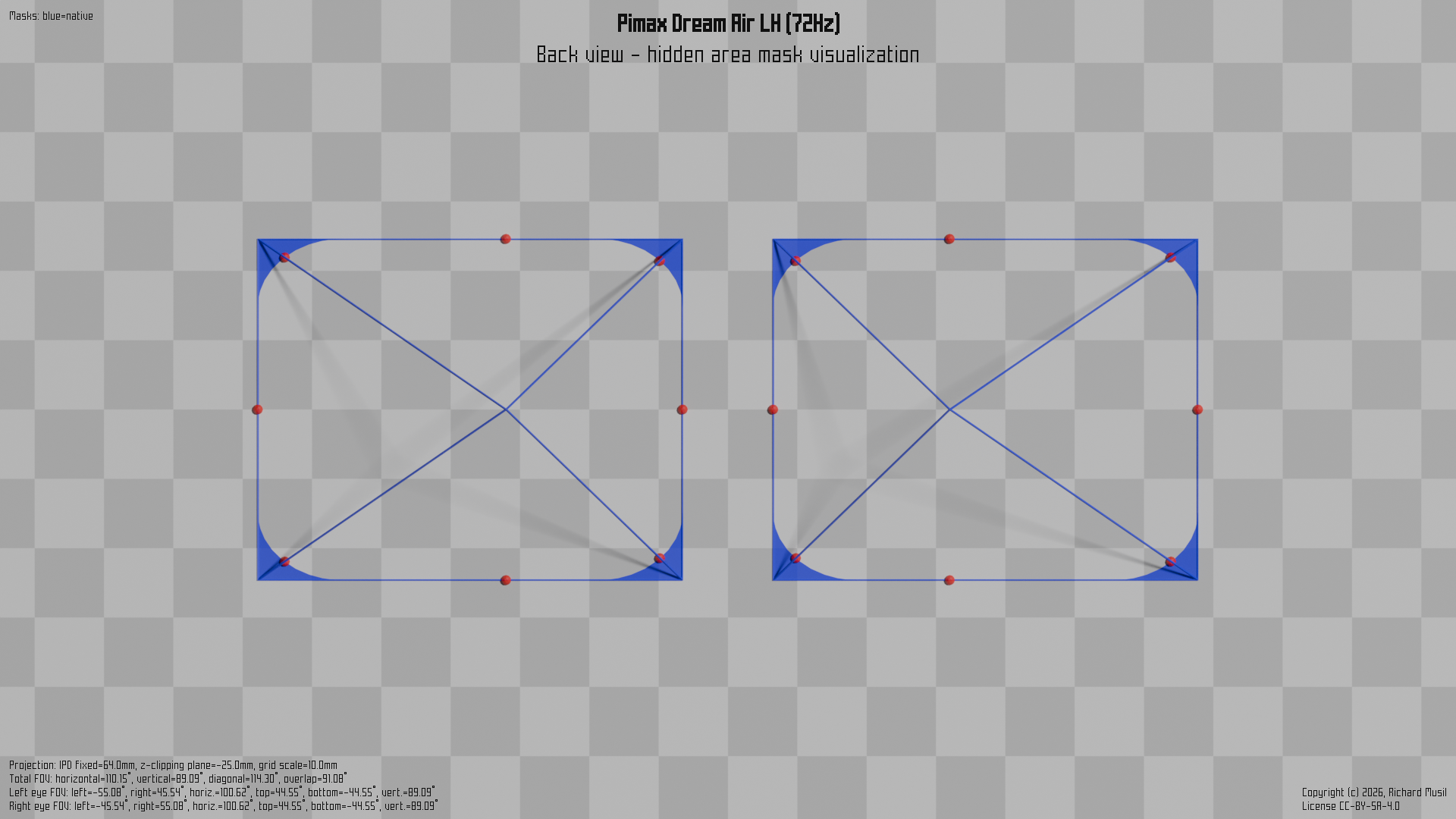

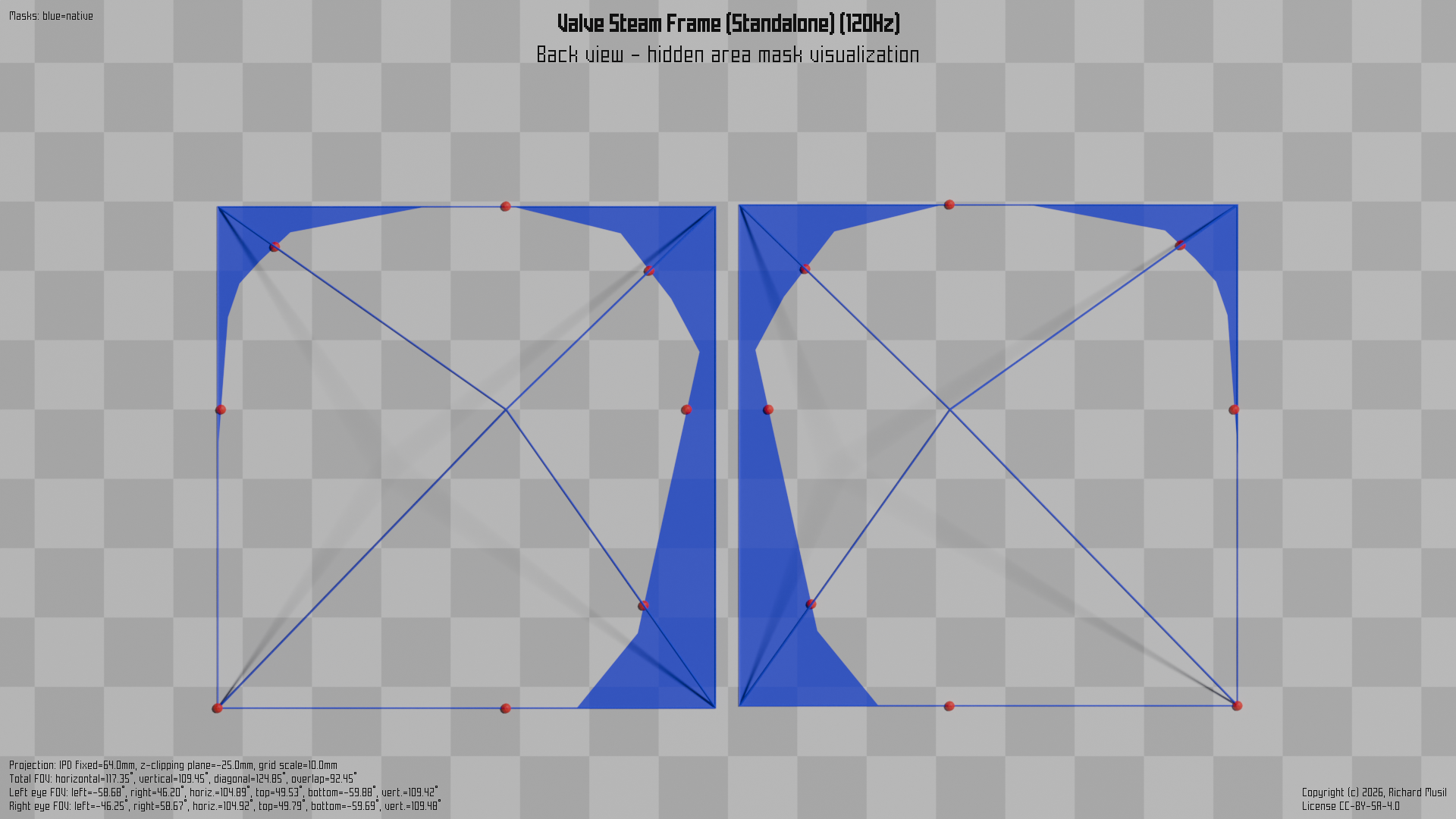

HAM: Hidden area mask, used to mask the part of the viewing frustum which is not visible to the user, usually because of some mechanical or optical constraints defined by the headset design, and therefore does not need to be rendered.

Rot LE, Rot RE: Left and right view rotations. When indicated, it usually means that the headset is designed with canted panels. Otherwise the panels are (most likely) coplanar and parallel to the face.


The latest headset data recorded: 2023-12-06 15:20:27
The table was generated: 2023-12-07 00:54:25
